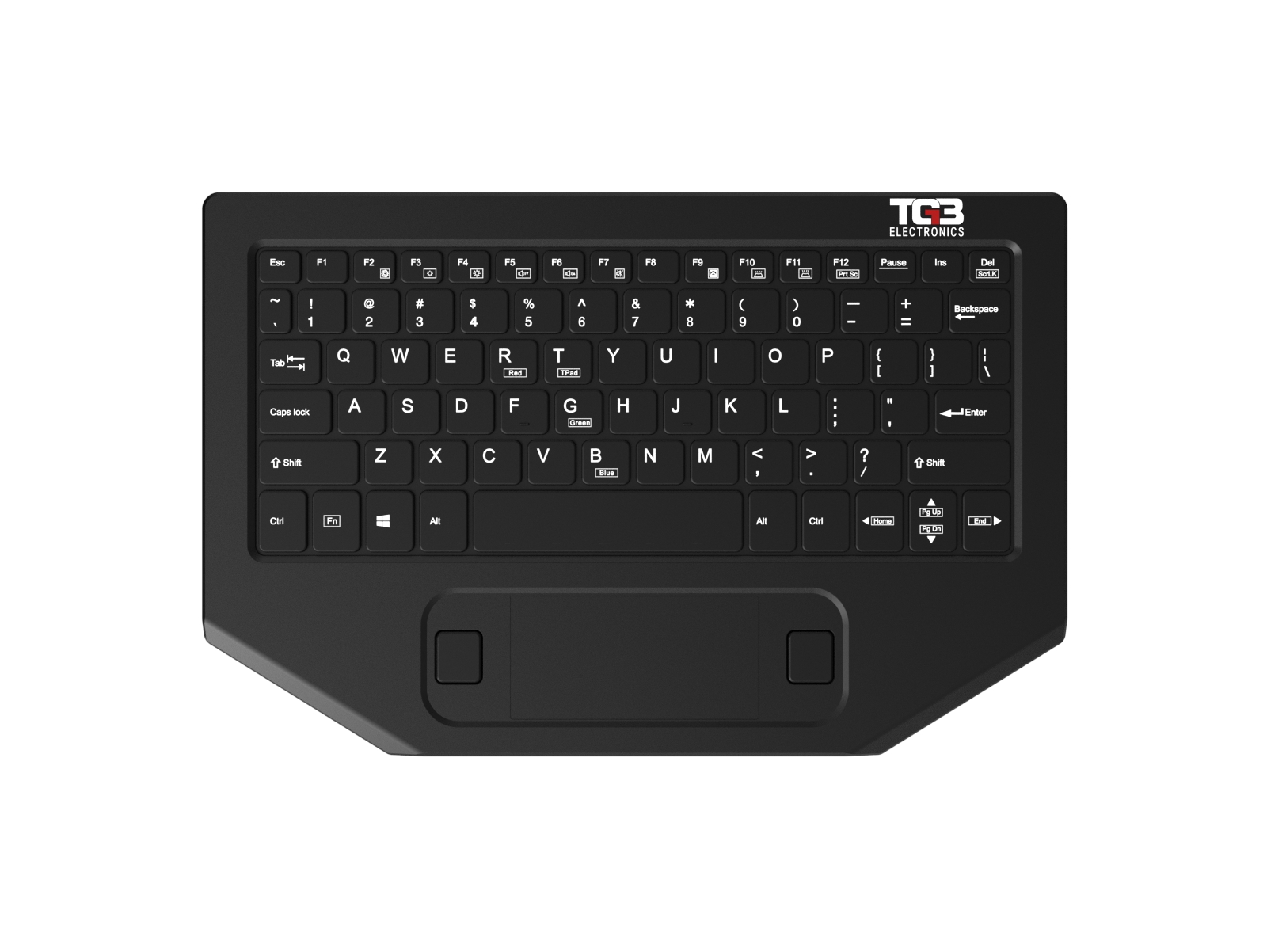

BLTXR rugged, low-profile keyboard (top view)
BLTXR rugged, low-profile keyboard (top view)

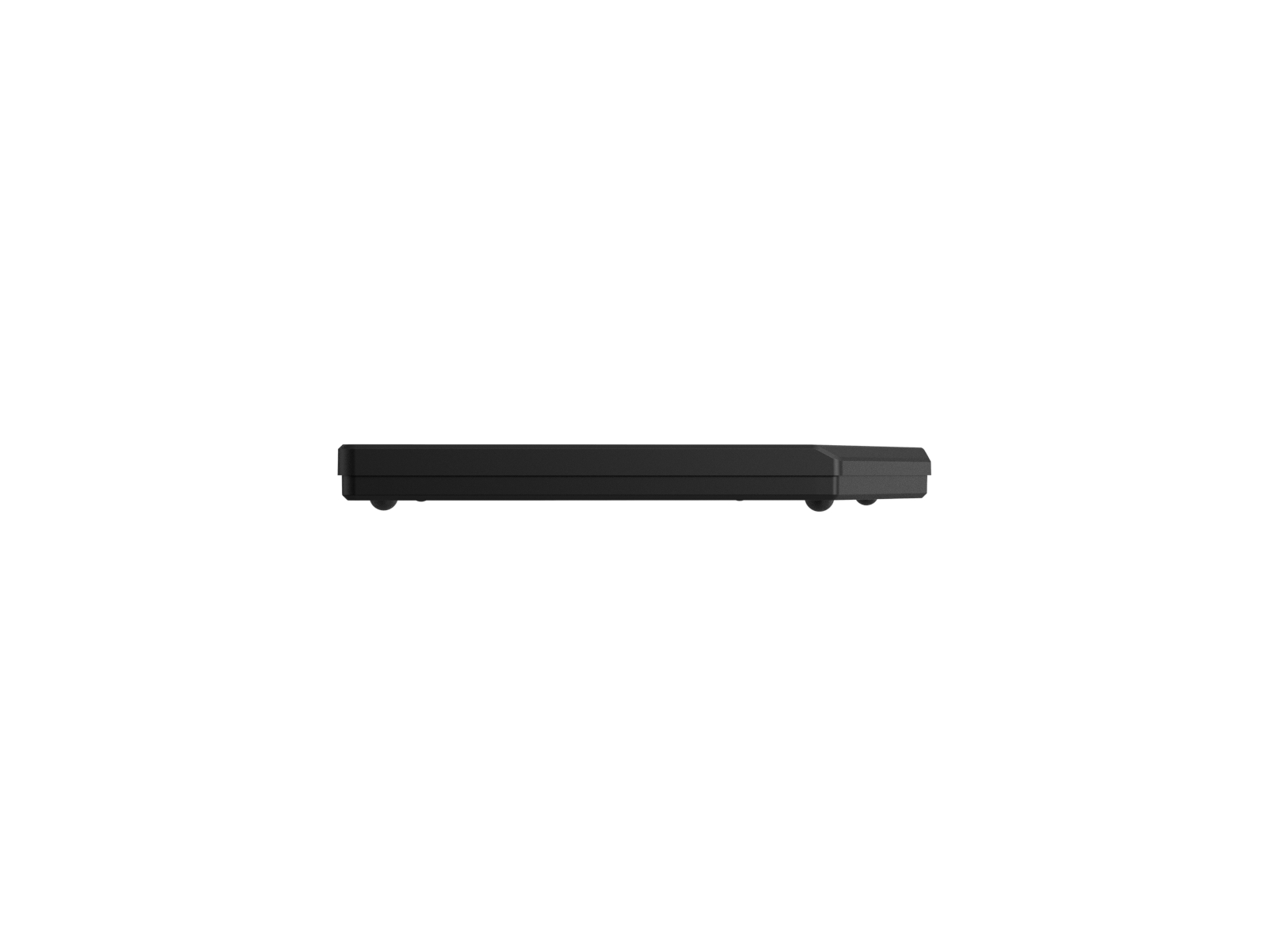

BLTXR rugged, low-profile keyboard (left view)
BLTXR rugged, low-profile keyboard (left view)

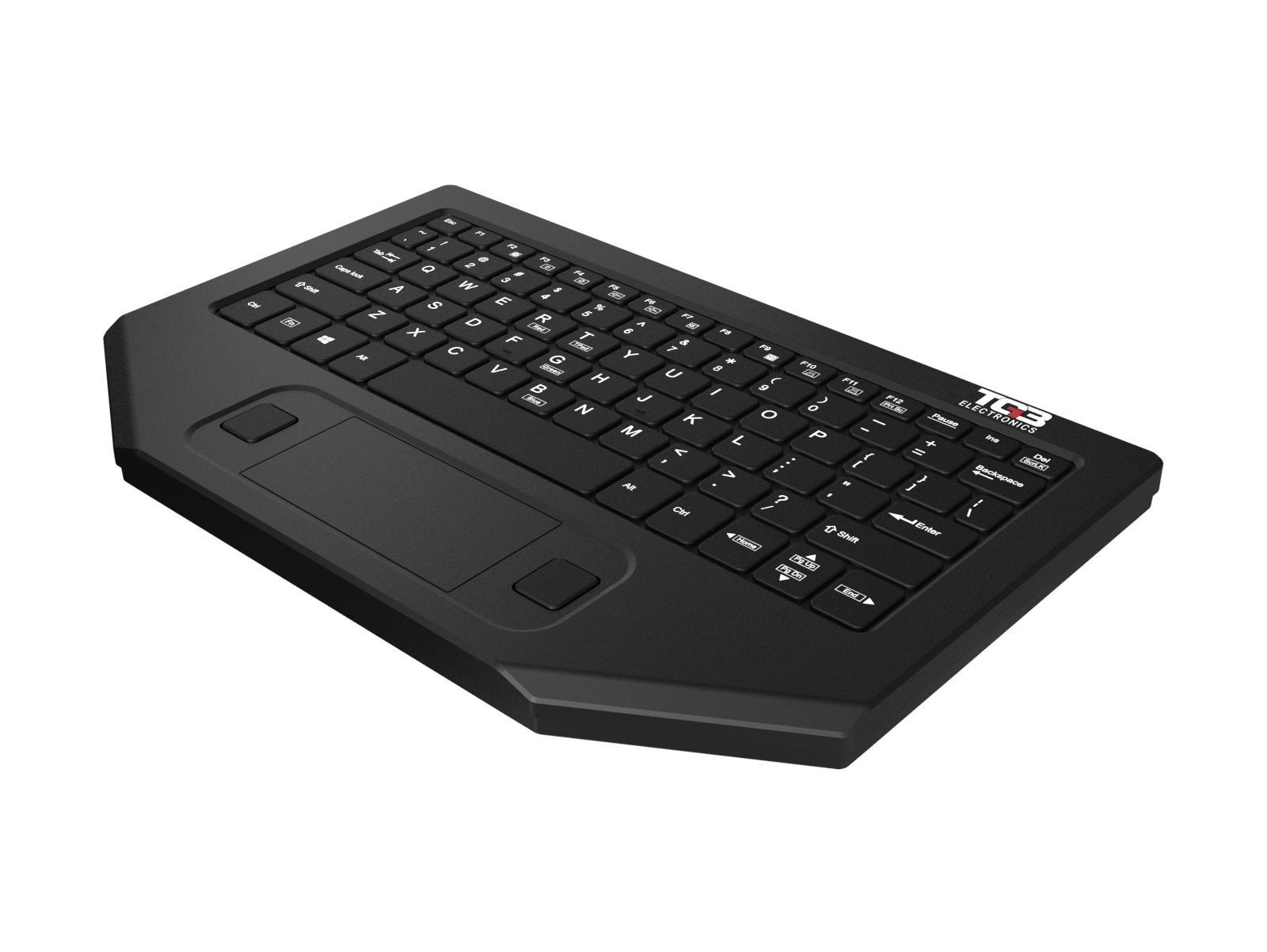

BLTXR rugged, low-profile keyboard (isometric view)
BLTXR rugged, low-profile keyboard (isometric view)

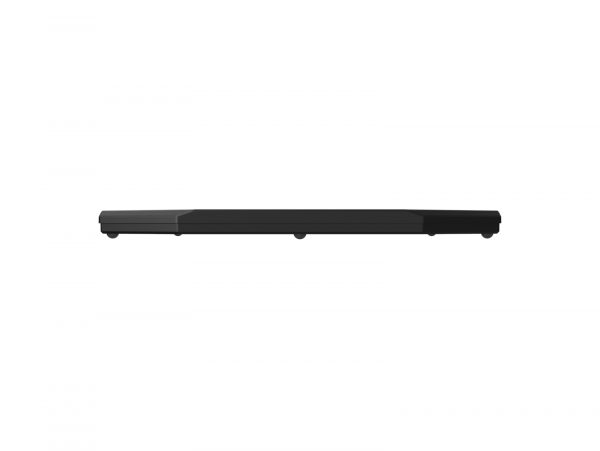

BLTXR rugged, low-profile keyboard (front view)
BLTXR rugged, low-profile keyboard (front view)

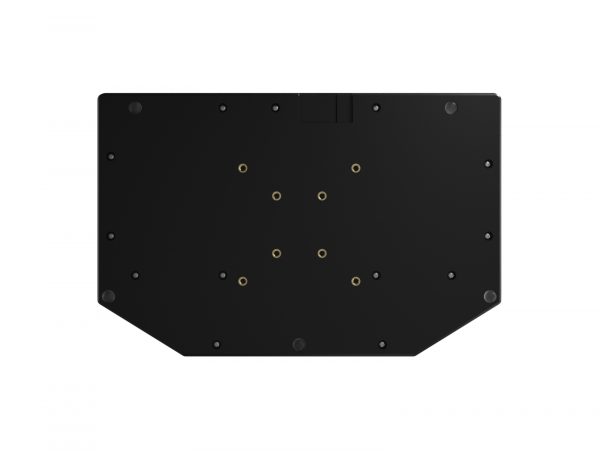

BLTXR rugged, low-profile keyboard (bottom view)
BLTXR rugged, low-profile keyboard (bottom view)

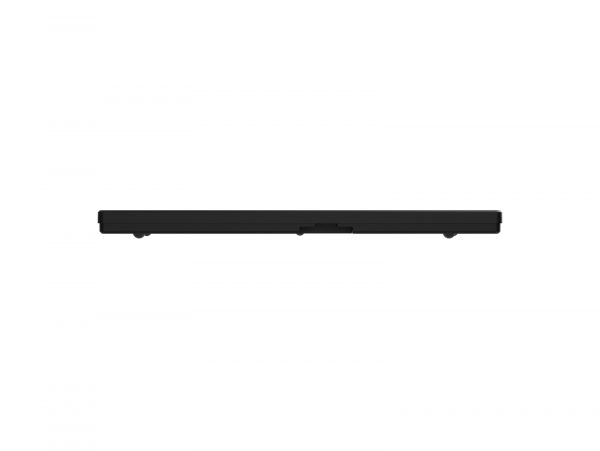

BLTXR rugged, low-profile keyboard (back view)
BLTXR rugged, low-profile keyboard (back view)

BLTXR: Low-Profile Keyboard with Center Touchpad

Rugged, low-profile rubber keyboard designed for public safety and mobile data applications

Keyboard Options

SKU: Choose options above for a standard keyboard or contact us to discuss a custom configuration.

Custom Keyboard Solutions

TG3 will bring your custom input solutions to life. Get Started
  • 79 keys
  • RGB backlighting rated for the life of the product (20,000 hr LEDs)
  • Low-cost, ultra-rugged keyboard
  • Low-profile with ergonomic design and feel
  • Slim, small-footprint space-saver
  • Tactile, low-travel key switches allow for faster actuation
  • Embedded multi-media functionality
  • Chemical-resistant engineered plastic resin housing and keycaps
  • Splash-proof touchpad with 2 sealed mouse buttons
  • 10 million actuations per key
  • VESA 75 and AMPS mounting options are standard
  • Ideal for mobile mounting solutions
  • Backlight dimming ideal for nighttime or ambient-light use
  • Proven quality and a 3-year warranty

Compliant

  • FCC
  • CE
  • RoHS

Electrical Specifications

  • Voltage: +5Vdc @ 500mA max from data cord (USB variant)
  • Compatible with root USB ports (on PC) or self-powered hubs (USB variant)
  • Radiated immunity: 20 Volts / meter
  • X/Y position resolution: 500 points / inch (20 points max)

Data Sheet

BLTXR Low-Profile Data Sheet (PDF)

Instructions

Cleaning Instructions and Approved Cleaners (PDF)
