- Low profile, full key size
- Tactile full travel key switches for superior feel vs. rubber keys
- LED backlighting good for life of product (200,000 hr LED’s)
- Standard red backlighting, other available colors
- Black keycaps with backlit legend
- Unique 2 shot and sublimated process (patent pending)
- Water resistant splash guard (Mil Std 810 compliant from top side)
- Splash-proof backlit touchpad with 2 backlit mouse buttons
- Large backlight characters for viewing

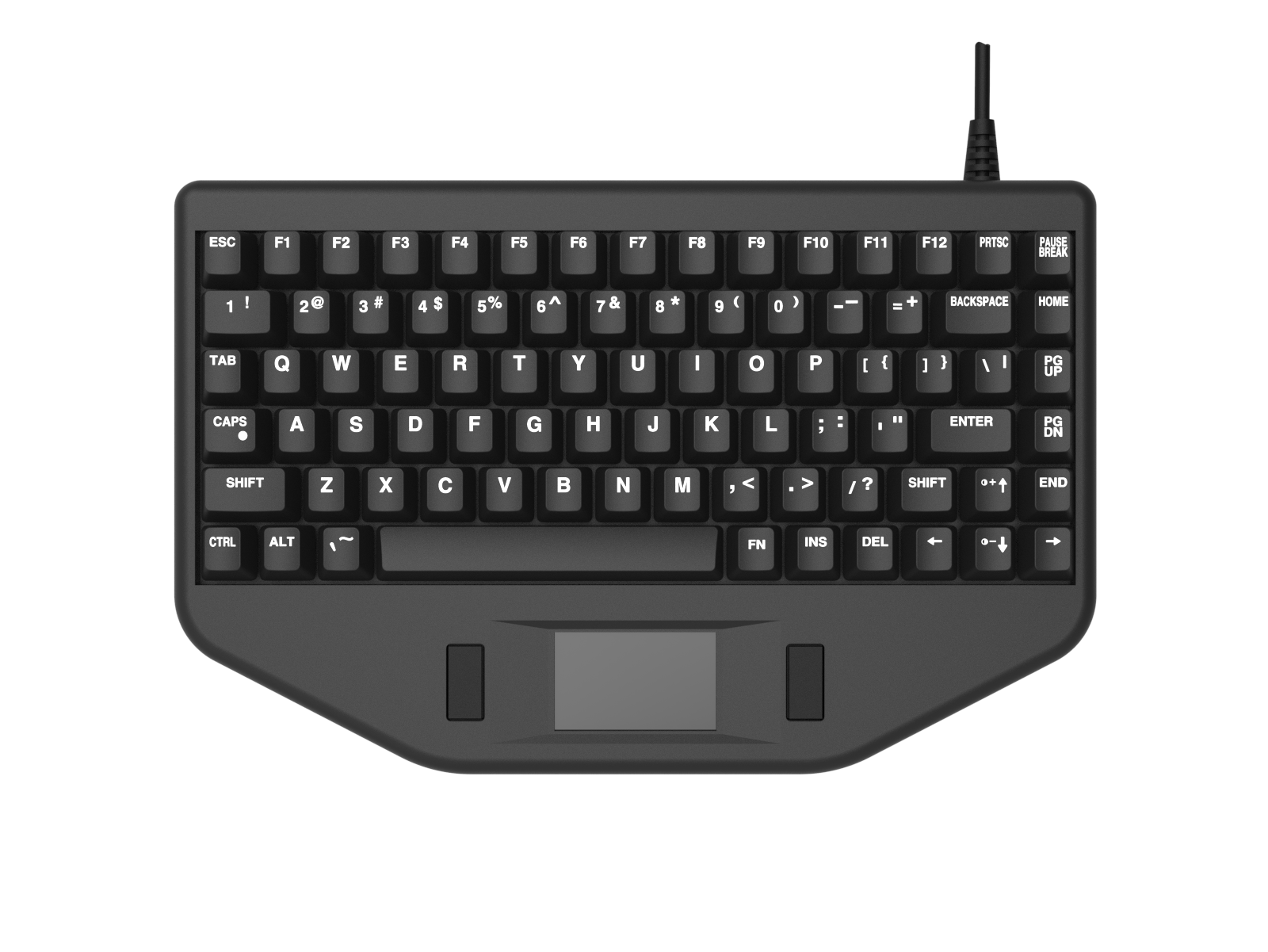

BLT Series low-profile keyboard (top view)

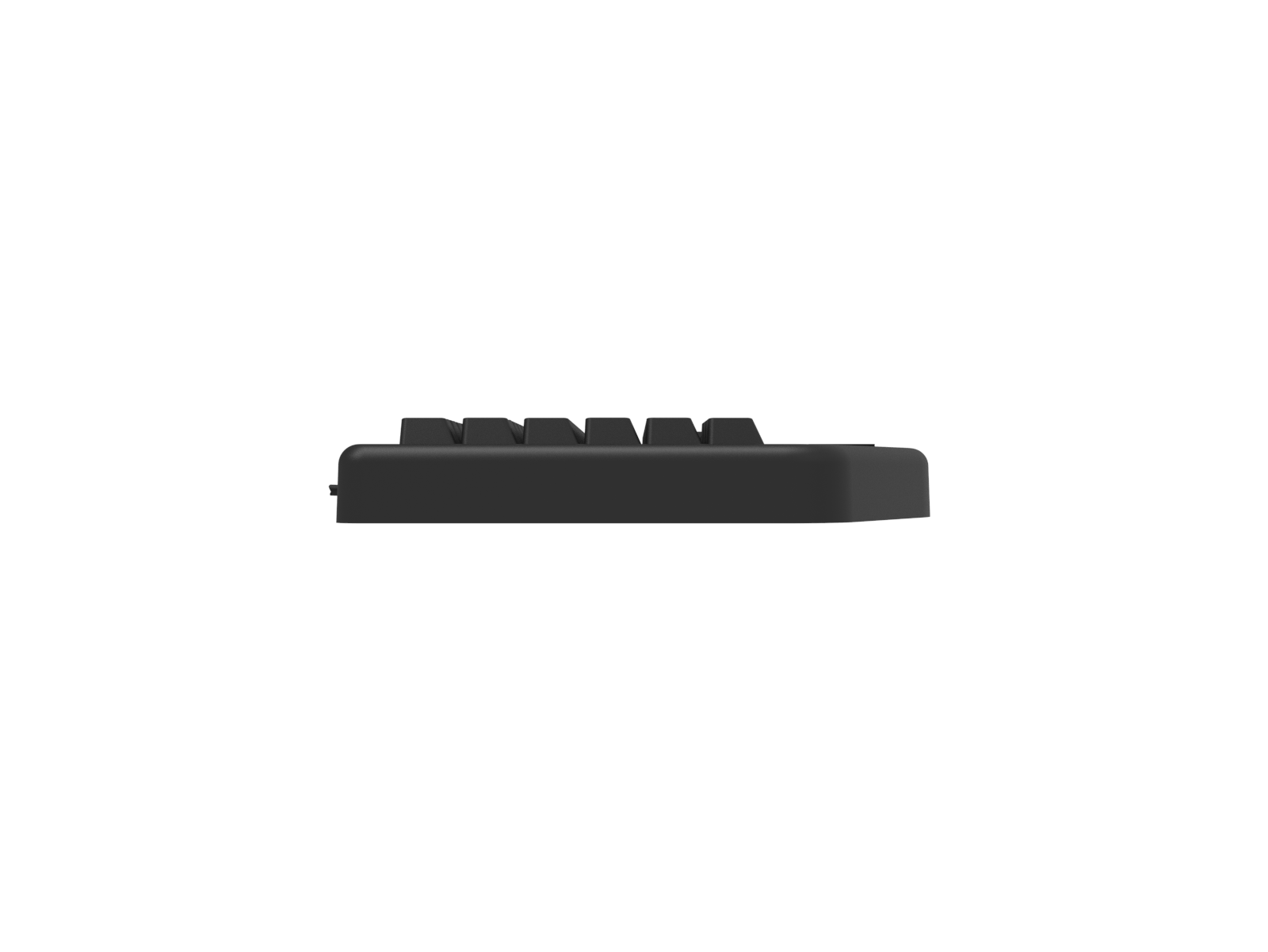

BLT Series low-profile keyboard (left view)

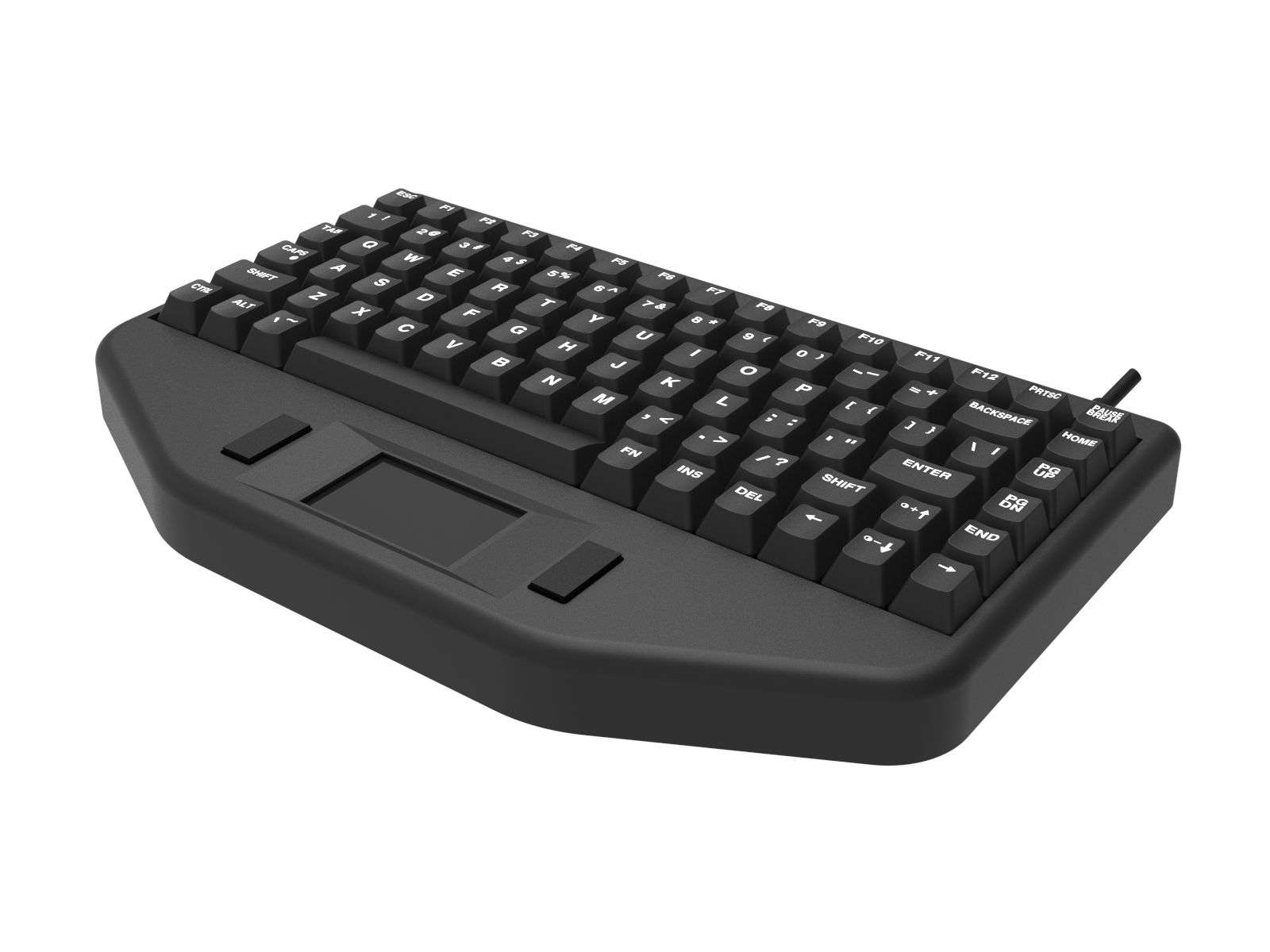

BLT Series low-profile keyboard (isometric view)

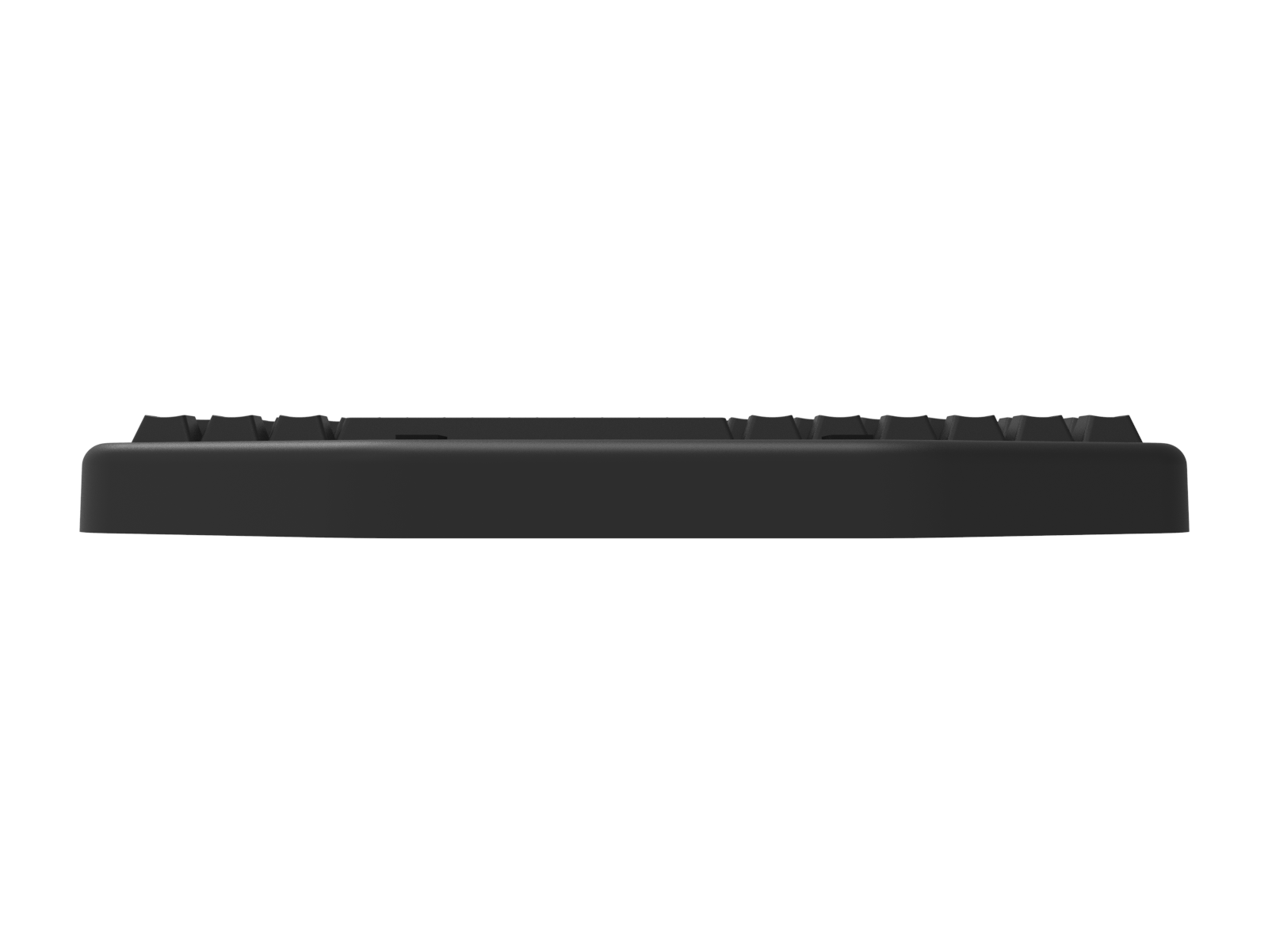

BLT Series low-profile keyboard (front view)

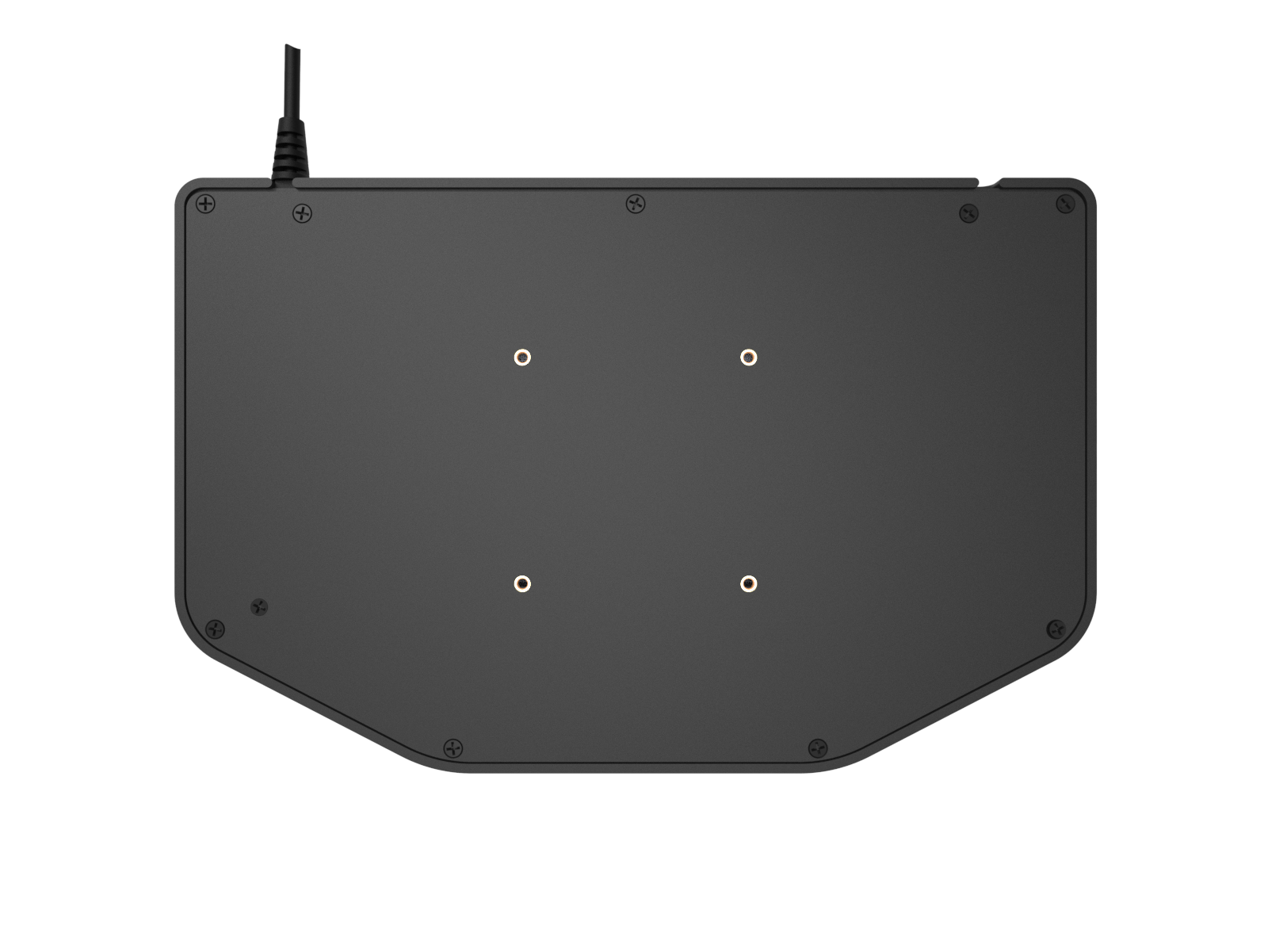

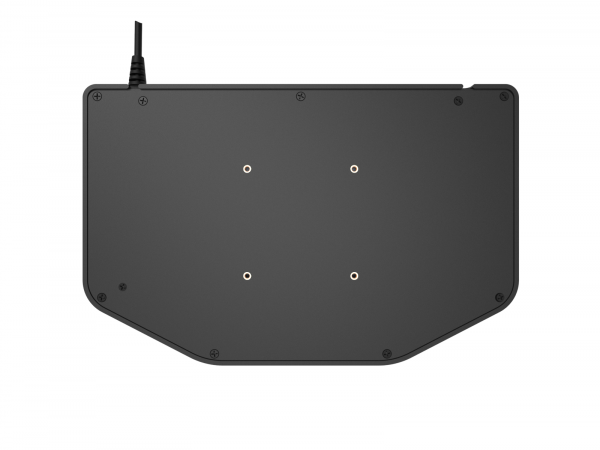

BLT Series low-profile keyboard (bottom view)

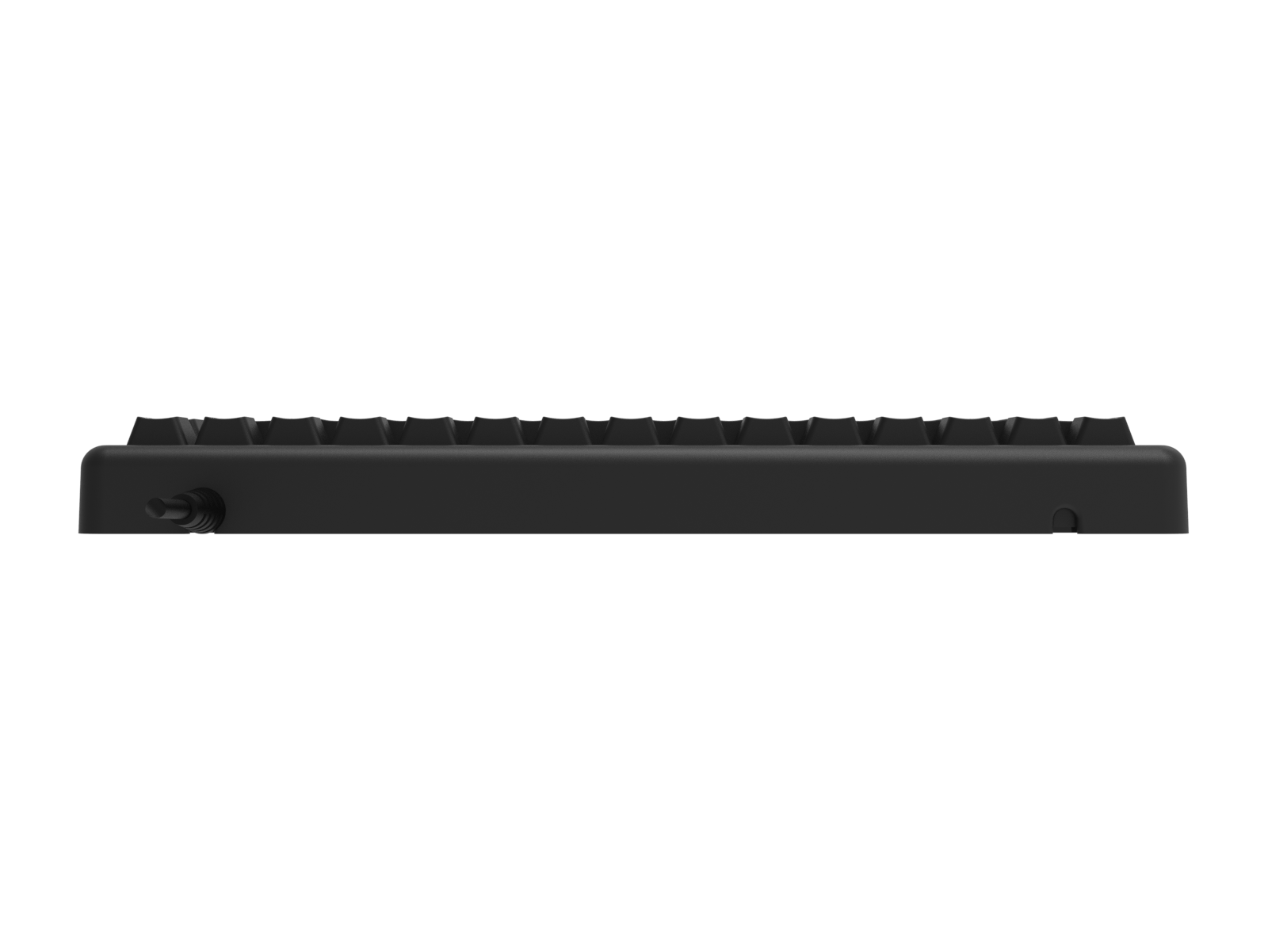

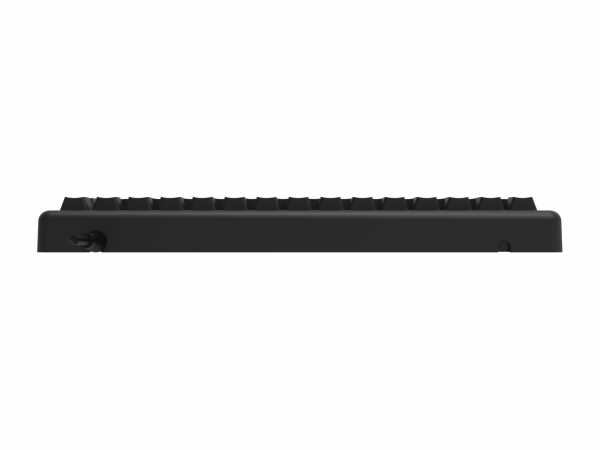

BLT Series low-profile keyboard (back view)
BLT Series: USB Keyboard with Center Touchpad
Low-profile, full-key size keyboard with adjustable red backlighting and a touchpad
- 82 key compact disk
- Overall dimensions: 12" x 7.75" x 1.25"
- Weight: >2lbs
- 5 million cycle key switches with gold contacts
- Temperature:
- Storage: -55C to +85C
- Operating: -40C to +70C
- Interface: PS/2, USB, Sun Type 5, ADB, custom
- PS/2: “Y” cable
- USB: single Type A plug
- Dimming: 8 levels of intensity controlled by "Fn" + "0" - "7" keys or "Fn" + "Up" / "Down" cursor keys
- X/Y position resolution: 500 points/inch (20 points max)
Compliant
- FCC
- UL
- CE
Electrical Specifications
- Voltage: +5Vdc from data cord
- Current: Non-backlit: 100mA Backlit: 500mA
- Radiated immunity: 20 volts/meter
